便携式多参数土壤呼吸测量系统

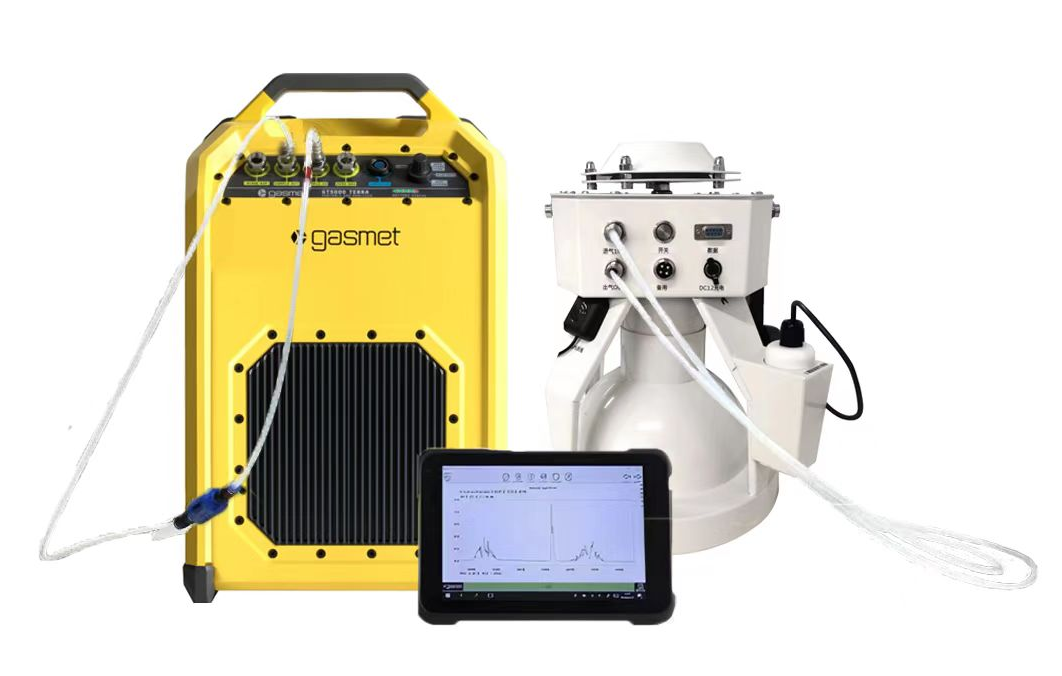

GT5000便携式多参数土壤呼吸测量系统是芬兰Gasmet公司生产的一款基于傅里叶变换红外光谱（FTIR）技术的便携式高精度土壤温室气体排放监测系统。该仪器可以在数秒内同时测定多种主要的温室气体成分，如：N₂O，CH₄，CO₂，H₂O，CO和NH₃，且测量精度可达ppb级。GT5000便携式多参数土壤呼吸测量系统可用于农田，湿地，森林，牧场，电厂，火灾现场等各种环境中的温室气体通量测量。

GT5000配备功能强大的Calcmet软件，它支持测量结果的在线查看和以往测量数据的进行对比分析。结果以电子表格的形式输出，便于用户处理数据；用户可以简单地通过测得的气体浓度计算出气体通量。

主要特点

l 采用傅里叶变换红外光谱技术；

l 同时测量N₂O，CH₄，CO₂，H₂O，CO和NH₃等6种温室气体，最多可同时测量50种气体；

l 多种无线连接方式，如WI-FI或蓝牙。

l 无需专业知识，用户可通过导航进行操作；

l 一键测量和即时的在线处理结果；

l 五种不同的视图展示相关的测量信息；

l 自动气室有机械臂，可缓慢升降；

l 通气口的设计可确保稳定的大气压力，且不会通过反向扩散影响测量；

l 气室的内部进出回路可有效的促进气体混合。

主要参数

1.测量原理：FTIR傅里叶变换红外光谱；

2.气体测定种类：可同时测定50种气体；

3.响应时间：通常<120s，基于所测定的气体和测量时间；

4.电池：锂离子电池，单节电池可维持3小时；

5.充电电源：115/230V AC；

6.分析软件：Calcmet（需Win7或10操作系统）；

7.数据连接：USB，以太网，蓝牙，WI-FI；

8.采样泵流速：2 L/min；

9.气体采样过滤：带有2μm孔径聚四氟乙烯过滤器的采样探头；

10. 采样气体进/出口配件：6mm快速接头；

11.外壳：大小：450×287×166 mm(H×W×D)；材料：ABS PC；防护等级：IP54（适用于野外便携式设备）；

12.重量：9.4kg（含电池）/8.0kg（不含电池）

13.光谱仪：分辨率：8cm^-1；扫描频率：10次/s；检测器：碲镉汞(MCT)光电探测器（珀尔帖致冷）；

分束器材料：硒化锌（ZnSe）；波数范围：900-4200cm^-1；

14.样品室结构：多通道，固定光程长度5m；反射镜：固定式，镀金；体积：0.5L；

操作条件

15.采样气体压力：环境压力；

16.采样气体温度：环境温度（-5~40℃），无冷凝；

17.操作温度：-5~40℃（短期），5~30℃（长期）；

性能指标

18.零点漂移：在环境背景下每24小时内漂移小于测量范围的2%；

19.灵敏度漂移：无；

20.线性偏差：小于测量范围的2%；

21.温度漂移：每10K温度变化，小于测量范围的1%。(带温度补偿)

22.压力影响：对于1%的测量压力变化，测量值将会出现1%的变化。（带压力补偿）

23.周围环境测量间隔：建议24h。

24.几种主要温室气体的检测范围和检测限

H2O：0-5%；最小检测限：0.010 Vol-%；

N2O：0-50 ppm；  最小检测限：7ppb；

NH3：0-100 ppm； 最小检测限：70ppb；

CO：0-200 ppm；  最小检测限：70ppb；

CO2：0-2000 ppm； 最小检测限：5ppm；

CH4：0-100 ppm； 最小检测限：40ppb；

eosAC气室指标

25. 气室体积：1969cm³；

26.气室覆盖面积：182cm²；

27.工作电压：12V DC；

28.测定功率：<8W

29.待机功耗：<1W

30.重量：约5kg

31.管路长度（分析仪与气室间）：10米或30m

32.辅助分析仪接口：3个

33.后期处理与可视化软件：eosAnalyze-AC

参考文献

1. Kandel, T. P., Gowda, P. H., & Northup, B. K. (2020). Influence of Tillage Systems, and Forms and Rates of Nitrogen Fertilizers on CO2 and N2O Fluxes from Winter Wheat Cultivation in Oklahoma. Agronomy, 10(3), 320.

2. McDonald, M. D., Lewis, K. L., Ritchie, G. L., DeLaune, P. B., Casey, K. D., & Slaughter, L. C. (2019).Carbon dioxide mitigation potential of conservation agriculture in a semi-arid agriculturalregion. AIMS Agriculture and Food, 4(1), 206.

3. Singh, H., Kandel, T. P., Gowda, P. H., Somenahally, A., Northup, B. K., & Kakani, V. G. (2019). Influence of Contrasting Soil Moisture Conditions on Carbon Dioxide and Nitrous Oxide Emissions from Terminated Green Manures. Agrosystems, Geosciences & Environment, 2(1).

4. Teutscherova, N., Vazquez, E., Arango, J., Arevalo, A., Benito, M., & Pulleman, M. (2019). Native arbuscular mycorrhizal fungi increase the abundance of ammonia-oxidizing bacteria, but suppress nitrous oxide emissions shortly after urea application. Geoderma, 338, 493-501.

5. Shrestha, D., Wendroth, O., & Jacobsen, K. L. (2019). Nitrogen loss and greenhouse gas flux across an intensification gradient in diversified vegetable rotations. Nutrient Cycling in Agroecosystems, 114(3),193-210.

6. Kandel, T. P., Gowda, P. H., Somenahally, A., Northup, B. K., DuPont, J., & Rocateli, A. C. (2018). Nitrous oxide emissions as influenced by legume cover crops and nitrogen fertilization. Nutrient Cycling in  Agroecosystems, 112(1), 119-131.

7. Brummell, M. (2015). Greenhouse gas production and consumption in soils of the Canadian High Arctic (Doctoral dissertation, University of Saskatchewan).

8. Brummell, M. E., Farrell, R. E., Hardy, S. P., & Siciliano, S. D. (2014). Greenhouse gas production and consumption in High Arctic deserts. Soil Biology and Biochemistry, 68, 158-165.

9. Stewart, K. J., Brummell, M. E., Farrell, R. E., & Siciliano, S. D. (2012). N2O flux from plant-soil systems in polar deserts switch between sources and sinks under different light conditions. Soil Biology and Biochemistry, 48, 69-77.

10. Duval, B. D., Curtsinger, H. D., Hands, A., Martin, J., McLaren, J. R., & Cadol, D. D. (2020). Greenhouse gas emissions and extracellular enzyme activity variability during decomposition of native versus invasive riparian tree litter. Plant Ecology, 1-13.

11. Falk, J. M., Schmidt, N. M., Christensen, T. R., & Ström, L. (2015). Large herbivore grazing affects the vegetation structure and greenhouse gas balance in a high arctic mire. Environmental Research Letters, 10(4), 045001.

12. Falk, J. M. (2014). Plant-soil-herbivore interactions in a high Arctic wetland-Feedbacks to the carbon cycle. Lund University.

13. Falk, J. M., Schmidt, N. M., & Ström, L. (2014). Effects of simulated increased grazing on carbon  allocation patterns in a high arctic mire. Biogeochemistry, 119(1-3), 229-244.

14. Bell, J. K., Siciliano, S. D., & Lamb, E. G. (2020). A survey of invasive plants on grassland soil microbial communities and ecosystem services. Scientific Data, 7(1), 1-8.

15. Korkiakoski, M., Tuovinen, J. P., Penttilä, T., Sarkkola, S., Ojanen, P., Minkkinen, K., ... & Lohila, A. (2019). Greenhouse gas and energy fluxes in a boreal peatland forest after clear-cutting.

16. Karu, H. (2015). Development of ecosystems under human activity in the North-East Estonian industrial

17. region: forests on post-mining sites and bogs.

18. Karu, H., Pensa, M., Rõõm, E. I., Portsmuth, A., & Triisberg, T. (2014). Carbon fluxes in forested bog margins along a human impact gradient: could vegetation structure be used as an indicator of peat carbon emissions?. Wetlands ecology and management, 22(4), 399-417.

19. Vadas, P. A., & Powell, J. M. (2019). Nutrient Mass Balance and Fate in Dairy Cattle Lots with Different Surface Materials. Transactions of the ASABE, 62(1), 131-138.

20. Holly, M. A., & Larson, R. A. (2017). Effects of manure storage additives on manure composition and greenhouse gas and ammonia emissions. Transactions of the ASABE, 60(2), 449-456.

21. Powell, J. M., & Vadas, P. A. (2016). Gas emissions from dairy barnyards. Animal Production Science, 56(3), 355-361.

22. Difford, G. F., Løvendahl, P., Veerkamp, R. F., Bovenhuis, H., Visker, M. H. P. W., Lassen, J., & de Haas, Y. (2020). Can greenhouse gases in breath be used to genetically improve feed efficiency of dairy cows?. Journal of Dairy Science.

23. Aruquipa, J. E. R. (2020). Efecto del tamaño de partícula del forraje en el consume, ganancia de peso y produccíon de metano en llamas y alpacas. Revista de Investigaciones (Puno)-Escuela de Posgrado de la UNA PUNO, 8(4), 1350-1357.

24. Girard, M., Duchaine, C., Godbout, S., Lévesque, A., Létourneau, V., & Lemay, S. P. (2019). Réduire l'exposition des travailleurs aux gaz, odeurs, poussières et agents pathogènes humains présents dans les bâtiments porcins.

25. Danielsson, R., Lucas, J., Dahlberg, J., Ramin, M., Agenäs, S., Bayat, A. R., ... & Roslin, T. (2019). Compound-and context-dependent effects of antibiotics on greenhouse gas emissions from livestock. Royal Society Open Science, 6(10), 182049.

26. Aruquipa, J. E. R., Colque, E. E. Q., Suca, J. G. M., Machaca, R. S., & Huanca, B. R. (2019). Effecto del procesamiento forrahero en la respuesta animal y la producción de metano en llamas y alpacas. Revista de Investigaciones de la Escuela de Posgrado de la UNA PUNO, 8(4), 1350-1357.

27. Phuong, L. T. B., Preston, T. R., Van, N. H., & Dung, D. V. (2019). Effect of additives (brewer’s grains and biochar) and cassava variety (sweet versus bitter) on nitrogen retention, thiocyanate excretion and methane production by Bach Thao goats. Livestock Research for Rural Development, 31.

28. Hu, E., Sutitarnnontr, P., Tuller, M., & Jones, S. B. (2018). Modeling temperature and moisture dependent emissions of carbon dioxide and methane from drying dairy cow manure. Frontiers of Agricultural Science and Engineering, (2), 13.

29. Wu, L., Koerkamp, P. W. G., & Ogink, N. (2018). Uncertainty assessment of the breath methane concentration method to determine methane production of dairy cows. Journal of dairy science, 101(2), 1554-1564

30. Pszczola, M., Strabel, T., Mucha, S., & Sell-Kubiak, E. (2018). Genome-wide association identifies methane production level relation to genetic control of digestive tract development in dairy cows. Scientific reports, 8(1), 1-11.

31. Drewry, J. L., Powell, J. M., & Choi, C. Y. (2017). Design and calibration of chambers for the measurement of housed dairy cow gaseous emissions. Transactions of the ASABE, 60(4), 1291-1300.

32. Haque, M. N., Hansen, H. H., Storm, I. M., & Madsen, J. (2017). Comparative methane estimation from cattle based on total CO2 production using different techniques. Animal Nutrition, 3(2), 175-179.

33. Porsavathdy, P., Do, H. Q., & Preston, T. R. (2017). Growth rate and feed conversion were improved, and emissions of methane reduced, when goats fed a basal diet of pigeon wood foliage (Trema orientalis) were supplemented with sun-dried cassava foliage (Manihot esculenta, Crantz) or water spinach (Ipomoea aquatica). Livestock Research for Rural Development. Volume 29, Article, 68.

34. Pszczola, M., Rzewuska, K., Mucha, S., & Strabel, T. (2017). Heritability of methane emissions from dairy cows over a lactation measured on commercial farms. Journal of animal science, 95(11), 4813-4819.

35. Porsavatdy, P., Preston, T. R., & Leng, R. A. (2016). Effect on feed intake, digestibility, N retention and methane emissions in goats of supplementing foliages of cassava (Manihot esculenta Crantz) and Tithonia diversifolia with water spinach (Ipomoea aquatica). Livestock Research for Rural Development, 28(5).

36. Lassen, J., & Løvendahl, P. (2016). Heritability estimates for enteric methane emissions from Holstein cattle measured using noninvasive methods. Journal of Dairy Science, 99(3), 1959-1967.

37. Machaca, M., Quispe, E. C., & Castro, A. (2015). Efecto de dos dietas fibrosas en la producción de metano en alpacas. Revista Investigaciones Altoandinas, 17(3), 441-444.

38. Storm, I. M., Hellwing, A. L. F., Nielsen, N. I., & Madsen, J. (2012). Methods for measuring and estimating methane emission from ruminants. Animals, 2(2), 160-183.

39. Lassen, J., Løvendahl, P., & Madsen, J. (2012). Accuracy of noninvasive breath methane measurements using Fourier transform infrared methods on individual cows. Journal of Dairy Science, 95(2), 890-898.

40. Inthapanya, S., Preston, T. R., Khang, D. N., & Leng, R. A. (2012). Effect of potassium nitrate and urea as fermentable nitrogen sources on growth performance and methane emissions in local “Yellow” cattle fed lime (Ca (OH) ₂) treated rice straw supplemented with fresh cassava foliage. Mitigation of methane production from ruminants; effect of nitrate and urea on methane production in an in vitro system and on growth performance and methane emissions in growing cattle, 70.

41. Leng, R. A., Preston, T. R., & Inthapanya, S. (2012). Biochar reduces enteric methane and improves growth and feed conversion in local “Yellow” cattle fed cassava root chips and fresh cassava foliage. Livestock Research for Rural Development, 24(11).

42. Madsen, J., Bjerg, B. S., Hvelplund, T., Weisbjerg, M. R., & Lund, P. (2010). Methane and carbon dioxide ratio in excreted air for quantification of the methane production from ruminants. Livestock Science, 129(1-3), 223-227.

43. Rõõm, E. I., Nõges, P., Feldmann, T., Tuvikene, L., Kisand, A., Teearu, H., & Nõges, T. (2014). Years are not brothers: two-year comparison of greenhouse gas fluxes in large shallow Lake Võrtsjärv, Estonia. Journal of hydrology, 519, 1594-1606.

44. Schiller, D. V., Marcé, R., Obrador, B., Gómez-Gener, L., Casas-Ruiz, J. P., Acuña, V., & Koschorreck, M. (2014). Carbon dioxide emissions from dry watercourses. Inland waters, 4(4), 377-382.

45. Cremona, F., Kõiv, T., Nõges, P., Pall, P., Rõõm, E. I., Feldmann, T., ... & Nõges, T. (2014). Dynamic carbon budget of a large shallow lake assessed by a mass balance approach. Hydrobiologia, 731(1), 109-123.

46. Bastien, J., Demarty, M., & Tremblay, A. (2011). CO2 and CH4 diffusive and degassing emissions from 2003 to 2009 at Eastmain 1 hydroelectric reservoir, Québec, Canada. Inland Waters, 1(2), 113-123.

47. Stewart, A. J., Mosher, J. J., Mulholland, P. J., Fortner, A. M., Phillips, J. R., & Bevelhimer, M. S. (2011). Greenhouse Gas Emissions from US Hydropower Reservoirs: FY2011 Annual Progress Report. ORNL/TM-2012/90.

48. Guérin, F., Abril, G., Tremblay, A., & Delmas, R. (2008). Nitrous oxide emissions from tropical hydroelectric reservoirs. Geophysical Research Letters, 35(6).

49. Abril, G., Guérin, F., Richard, S., Delmas, R., Galy-Lacaux, C., Gosse, P., ... & Matvienko, B. (2005). Carbon dioxide and methane emissions and the carbon budget of a 10-year old tropical reservoir (Petit Saut, French Guiana). Global biogeochemical cycles, 19(4).

50. Baciu, C., Ionescu, A., & Etiope, G. (2018). Hydrocarbon seeps in Romania: gas origin and release to the atmosphere. Marine and Petroleum Geology, 89, 130-143.

51. Ionescu, A., Baciu, C., Kis, B. M., & Sauer, P. E. (2017). Evaluation of dissolved light hydrocarbons in different geological settings in Romania. Chemical Geology, 469, 230-245.

52. Ciotoli, G., et al. "Tiber delta CO2-CH4 degassing: A possible hybrid, tectonically active Sediment-Hosted Geothermal System near Rome." Journal of Geophysical Research: Solid Earth 121.1 (2016): 48-69.

53. Etiope, G., & Ionescu, A. (2015). Low-temperature catalytic CO 2 hydrogenation with geological quantities of ruthenium: a possible abiotic CH 4 source in chromitite-rich serpentinized rocks. Geofluids, 15(3), 438-452.

54. Ciotoli, G., Etiope, G., Florindo, F., Marra, F., Ruggiero, L., & Sauer, P. E. (2013). Sudden deep gas eruption nearby Rome's airport of Fiumicino. Geophysical Research Letters, 40(21), 5632-5636.

55. Etiope, G., Tsikouras, B., Kordella, S., Ifandi, E., Christodoulou, D., & Papatheodorou, G. (2013). Methane flux and origin in the Othrys ophiolite hyperalkaline springs, Greece. Chemical Geology, 347, 161-174.

56. Duval, B. D., Cadol, D., Martin, J., & Timmons, S. (2018). Persistent Effects of the Gold King Mine Spill on Biota: Animas and San Juan Rivers, Northern New Mexico.

57. Marques, J. M., Etiope, G., Neves, M. O., Carreira, P. M., Rocha, C., Vance, S. D., & Suzuki, S. (2018). Linking serpentinization, hyperalkaline mineral waters and abiotic methane production in continental peridotites: an integrated hydrogeological-bio-geochemical model from the Cabeço de Vide CH4-rich aquifer (Portugal). Applied Geochemistry, 96, 287-301.

58. Webster, K. D., Drobniak, A., Etiope, G., Mastalerz, M., Sauer, P. E., & Schimmelmann, A. (2018). Subterranean karst environments as a global sink for atmospheric methane. Earth and Planetary Science Letters, 485, 9-18.

59. Webster, K. D., Schimmelmann, A., Drobniak, A., Mastalerz, M., Lagarde, L. R., Boston, P. J., & Lennon, J. T. (2018). Diversity and composition of cave methanotrophic communities. bioRxiv, 412213.

60. Nguyễn-Thuỳ, D., Schimmelmann, A., Nguyễn-Văn, H., Drobniak, A., Lennon, J. T., T ạ, P. H., & Nguy ễn, N. T. Á. (2017). Subterranean microbial oxidation of atmospheric methane in cavernous tropical karst. Chemical Geology, 466, 229-238.

61. Lesmeister, L., & Koschorreck, M. (2017). A closed-chamber method to measure greenhouse gas fluxes from dry aquatic sediments. Atmospheric Measurement Techniques, 10(6), 2377.

62. Nwaishi, F., Petrone, R. M., Macrae, M. L., Price, J. S., Strack, M., & Andersen, R. (2016). Preliminary assessment of greenhouse gas emissions from a constructed fen on post-mining landscape in the Athabasca oil sands region, Alberta, Canada. Ecological Engineering, 95, 119-128.
